LEARNING VOCAL-TRACT AREA AND RADIATION WITH A PHYSICS-INFORMED WEBSTER MODEL

Abstract

We present a physics-informed voiced backend renderer for singing-voice synthesis. Given synthetic single-channel audio and a fund-amental--frequency trajectory, we train a time-domain Webster model as a physics-informed neural network to estimate an interpretable vocal-tract area function and an open-end radiation coefficient. Training enforces partial differential equation and boundary consistency; a lightweight DDSP path is used only to stabilize learning, while inference is purely physics-based. On sustained vowels (/a/, /i/, /u/), parameters rendered by an independent finite-difference time-domain Webster solver reproduce spectral envelopes competitively with a compact DDSP baseline and remain stable under changes in discretization, moderate source variations, and about ten percent pitch shifts. The in-graph waveform remains breathier than the reference, motivating periodicity-aware objectives and explicit glottal priors in future work.

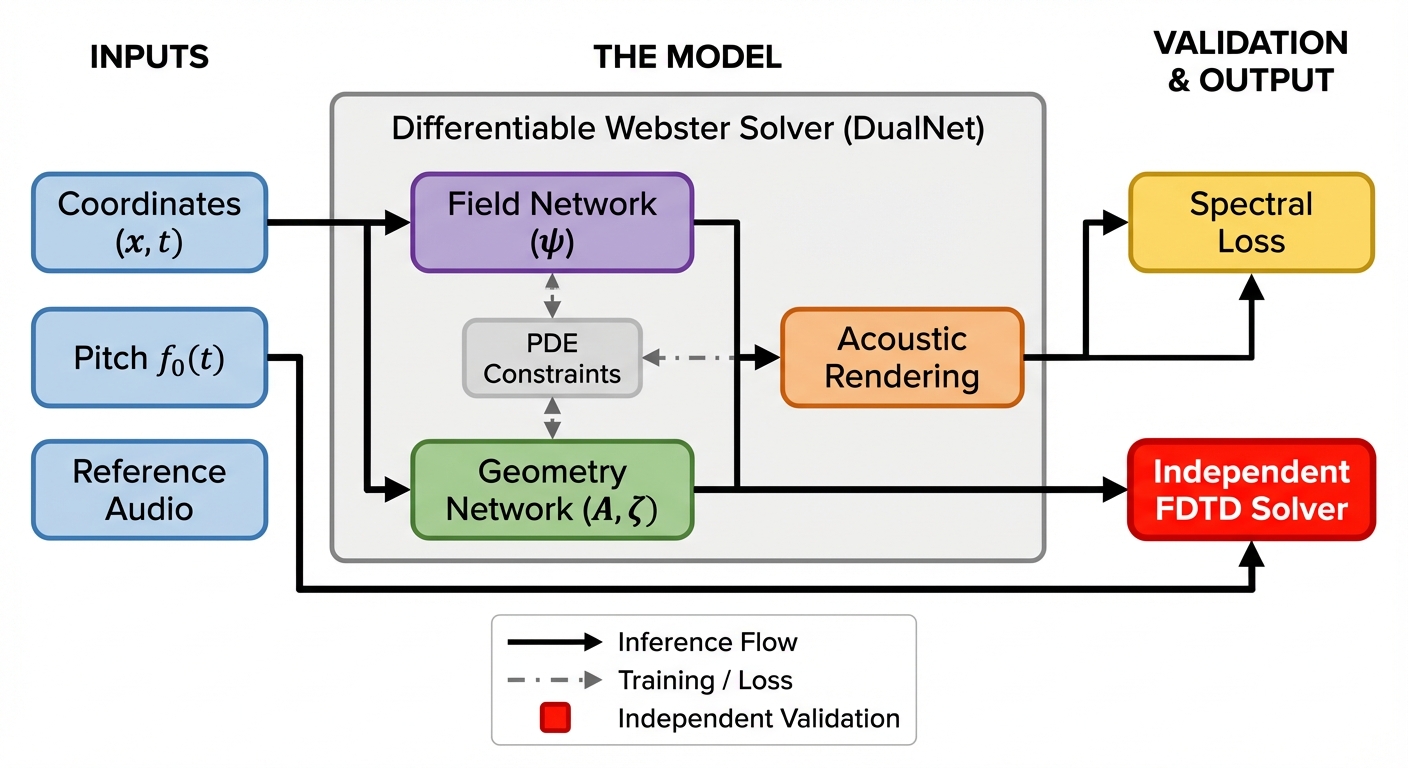

Figure 1: Overview of the physics-informed voiced renderer. DualNet predicts $(\psi,\hat A,\hat\zeta)$ and a differentiable Webster rendering path produces $\hat y(t)$ for reference-based losses during training (inference is physics-only). Solid arrows denote forward signal flow in the renderer; dashed arrows denote training-only loss/backprop connections (e.g., using $y(t)$), which are removed at inference. For solver-independent evaluation (not shown), $(\hat A,\hat\zeta)$ are exported to an independent FDTD--Webster solver for post-render assessment.

Figure 2: Simplified overview of the proposed Webster-PINN-SVS system. A time–domain Webster PINN infers an area function $A(x)$ and a single radiation scalar $\zeta$ from sustained vowels; the learned parameters are then evaluated in an independent FDTD–Webster forward solver.

Figure 3: Independent FDTD Webster solver used as a physical reference for validation. This solver is not differentiable and is not part of the learning graph.

Audio Examples

Each row below shows a sustained vowel reference rendered by an FDTD–Webster forward model, together with (i) a post-rendered signal generated by re-synthesising the learned $\hat A(x)$ and $\hat\zeta$ in an independent solver, and (ii) a compact DDSP-only baseline conditioned on the same $f_0(t)$ and RMS. Listening should roughly align with the quantitative trends in the paper: for /a/ and /u/, the post-render closely tracks the reference spectral envelope and periodicity while the DDSP baseline exhibits a looser envelope fit; /i/ remains more challenging under the current low-data regime.

Vowel	Ground Truth (FDTD–Webster reference)	Post-render (ours, FDTD with $\hat A,\hat\zeta$)	DDSP-only baseline (harmonic+noise)

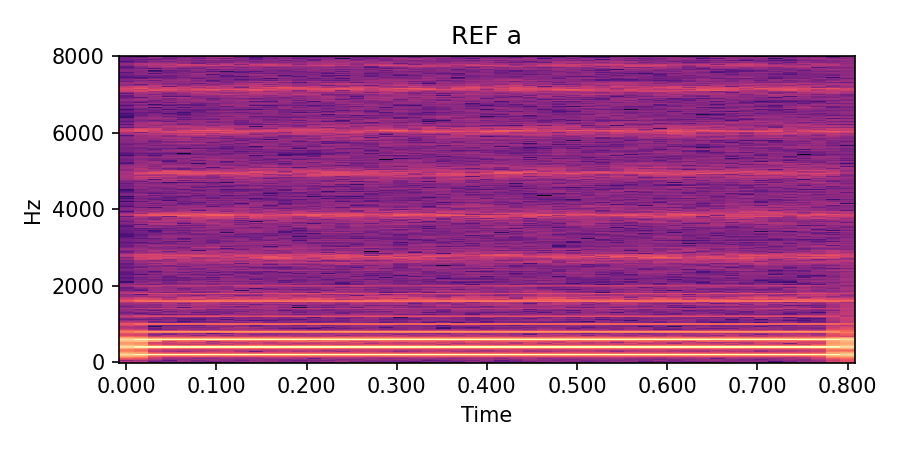

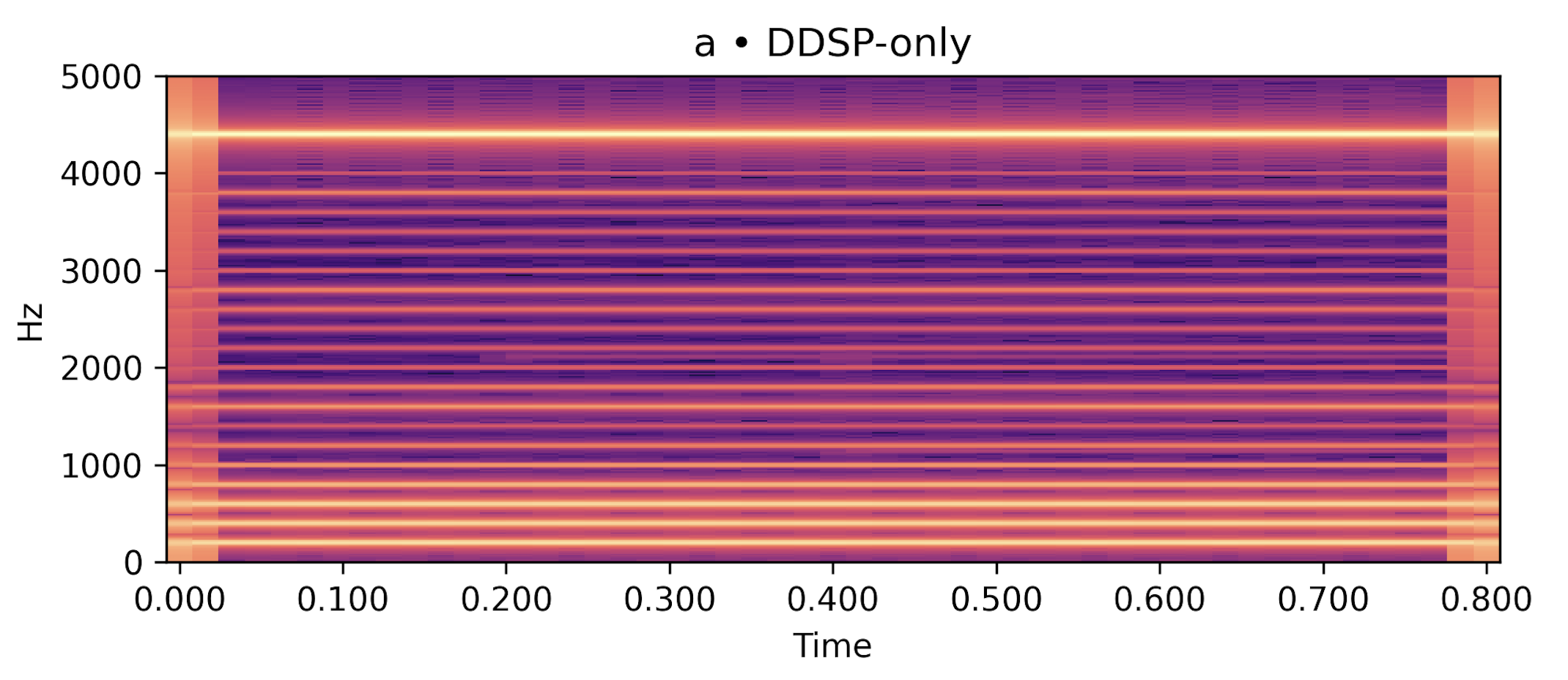

/a/ steady, $f_0 \approx 200$ Hz

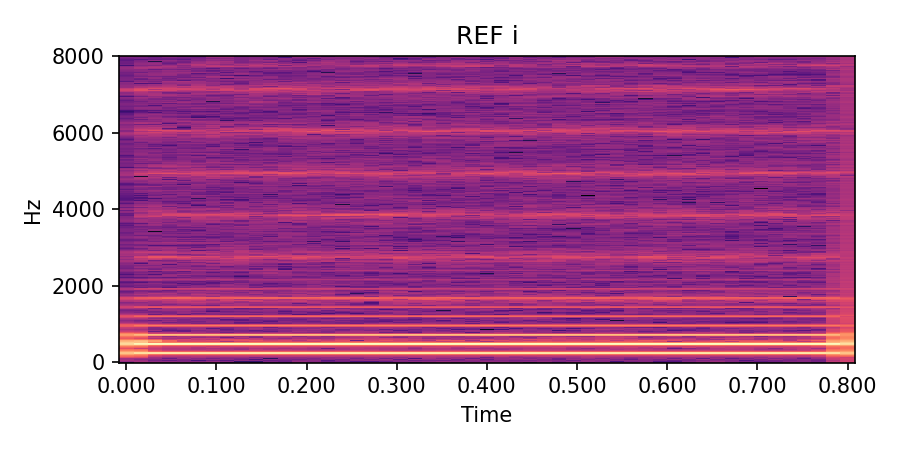

/i/ steady, $f_0 \approx 240$ Hz

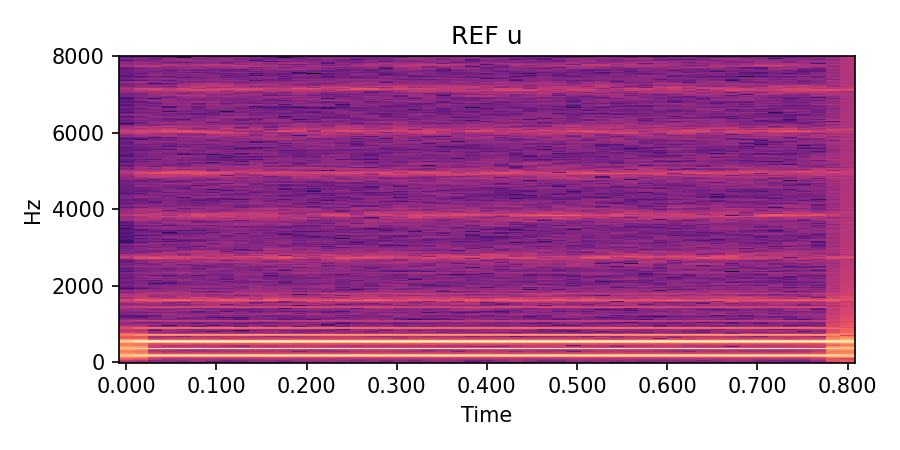

/u/ steady, $f_0 \approx 180$ Hz

Table 1: Reference vs post-render vs DDSP-only baseline for sustained vowels. Under the present low-data configuration, the physics-guided post-render is competitive with the reference envelope on /a/ and /u/ and clearly improves upon the DDSP baseline; /i/ remains more demanding.

All files are loudness-normalised and trimmed for presentation. Listening should be done on headphones or studio monitors.

BibTeX

If you use this work, please cite:

Lu, M. and Reiss, J.D., 2026. Learning Vocal-Tract Area and Radiation with a Physics-Informed Webster Model. In IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP).

@inproceedings{lu2026websterpinnsvs,
  title     = {Learning Vocal-Tract Area and Radiation with a Physics-Informed Webster Model},
  author    = {Lu, Minhui and Reiss, Joshua D.},
  booktitle = {Proc. IEEE Int. Conf. on Acoustics, Speech and Signal Processing (ICASSP)},
  year      = {2026}
}
